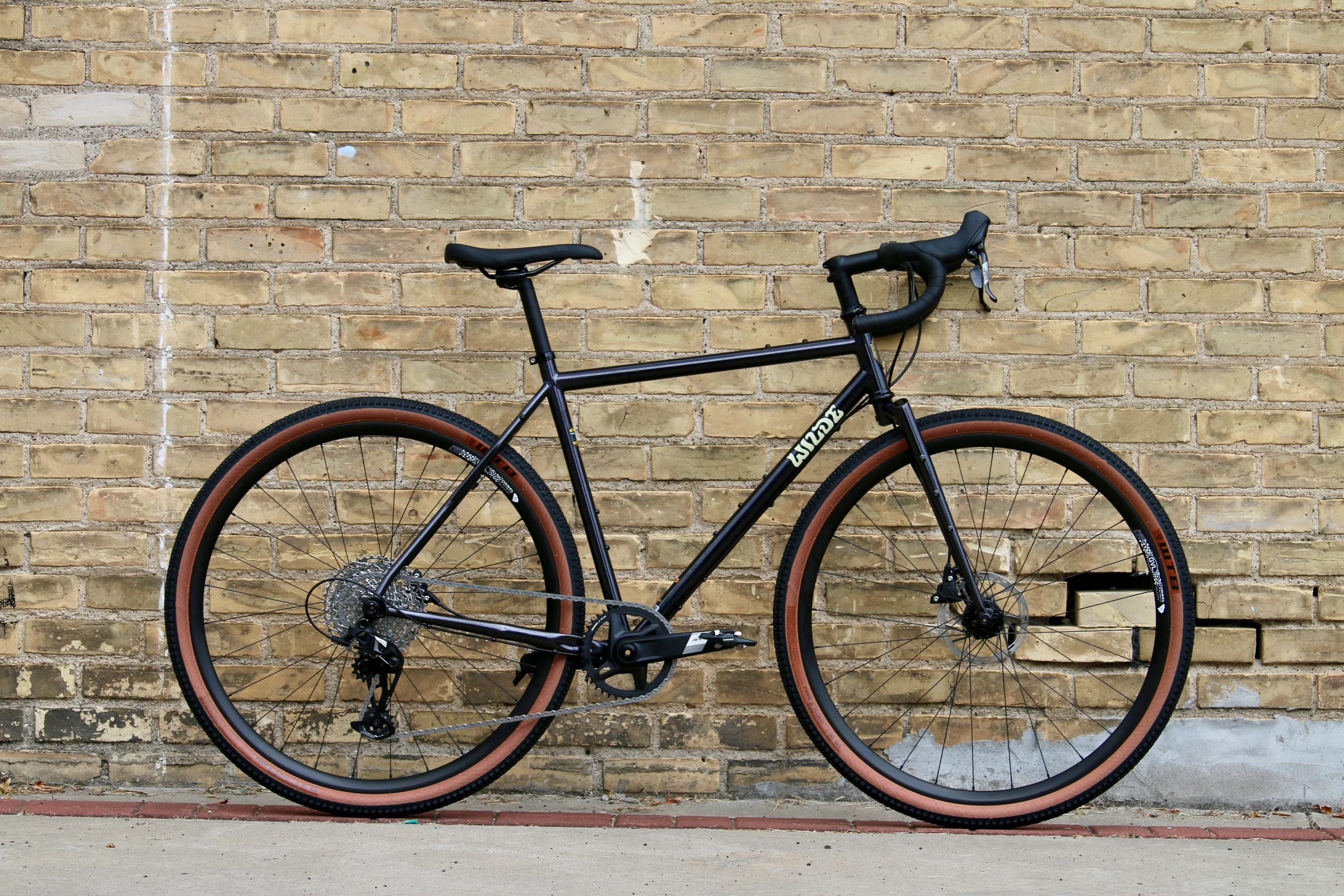

WILDE BICYCLE Rambler Frame Set - Galaxy Black

The Rambler series inherits the genes of WILDE BICYCLE's memorable first model, the Earth Ship, which is the optimal solution for gravel bikes. By producing it in Taiwan, costs have been reduced, making it more accessible to a wider range of people.

Unlike the SL model, which is equipped with a carbon fork, the Rambler features a segmented steel fork. Compared to the SL model, it has a slightly longer trail value for better straight-line stability and a slightly smaller BB drop, suggesting a greater focus on off-road riding. In addition, the internal routing for hub dynamo wiring reflects Jeff's thoughtful consideration, cultivated through extensive knowledge in the bicycle industry over many years.

The wheel size is convertible between 700c and 650b. It's a versatile bike that can adapt to various scenarios depending on the build, whether you're tackling rocky roads and gravel with 650b or using it as an all-rounder touring bike with 700c. Furthermore, the frame is equipped with ample eyelets, making it suitable as an all-weather bike with full fenders.

FRAME FEATURE

• Max tire clearance: 700c x 50mm or 650b x 2.2"
• Three-pack mounts on the underside of the downtube
• Feedbag mount on the top tube
• Fender and rack mounts included
• Full-loop cable guide on the chainstay
• Compatible with both front double and single drivetrains
• Rear end compatible with SRAM UDH
• Longer trail value for straight-line stability and a smaller BB drop for quick handling, offering a balanced ride
• Features WILDE BICYCLE's unique TLC tubing, which is tough, lightweight, and offers excellent handling


FORK FEATURE

• WILDE BICYCLE original segmented steel fork
• Fender mounts
• Double eyelet fork ends
• Three-pack mounts
• Mid-blade rack mounts
• Internal dynamo routing
• Mounts compatible with SURLY 8-Pack & 24-Pack Racks
• Max tire clearance for fork: 700c x 50mm or 650b x 2.2"


[SPEC]

Frame Material:	WILDE TLC Chromoly steel
Frame Color:	Galaxy Black
Fork Weight:	avg. 1.26kg (with uncut steerer)
Frame Weight:	avg. 2.3kg (M size)
Head Tube:	38mm Straight Compatible with EC34/EC34 headset
Fork Steerer:	1-1/8" Straight Steerer
Brake Mount:	Flat Mount
BB:	BSA/JIS, 68mm Threaded
Fork Ends:	100x12mm Thru Axle
Rear Ends:	142x12mm Thru Axle
Seat Post Diameter:	27.2mm
Seat Collar Diameter:	30.0mm
Tire Clearance:	700c x 50mm or 650b x 2.2" (*XS size designed for 650b wheels only)
Recommended Height:	XS (approx. 152cm-162cm) S (approx. 162cm-170cm) M (approx. 170cm-175cm) L (approx. 175cm-182cm) XL (approx. 182cm-190cm)
Included Accessories:	Seat collar 12mm Thru Axle - 1.5 x 124mm 12mm Thru Axle - 1.5 x 175mm



[SIZE / GEOMETRY]

Frame Size	XS	S	M	L	XL
Wheel Size	650b	700c	700c	700c	700c
Head Tube Angle (deg.)	70.5	70.5	71	72	72
Seat Tube Angle (deg.)	74	74	73.5	73.5	73.5
Head Tube Length (mm)	105	130	140	160	180
Seat Tube Length (Center to Center) (mm)	425	450	475	505	525
Effective Top Tube Length (mm)	524	538	549	559	580
Stack Height (mm)	533	565	576	599	618
Reach (mm)	370	376	378	382	396
Chainstay Length (mm)	425	438	438	438	438
Fork (Axle to Crown) (mm)	407	407	407	407	407
Rake (mm)	49	49	49	49	49
Trail (mm)	72	76	73	66	66
Standover (mm)	746	772	790	817	835
Head Tube Extension (mm)	45	47	47	47	47
BB Drop (mm)	63	68	68	68	68

[Important Notes]

*Please note that due to fluctuations in exchange rates and shipping costs, import prices may be subject to change or import may be discontinued without prior notice. We appreciate your understanding.

*There may be damage or dirt on the outer packaging of imported products during shipping, as well as minor scratches or paint irregularities on the product itself. However, if these issues do not affect the product's function or performance, they are treated as acceptable goods. As these are direct imports from overseas, we kindly ask for your understanding.
